5G UPF: Pump Up the Volume!

Alexandre Cassen, <acassen@gmail.com> | Olivier Gournet, <gournet.olivier@gmail.com>

Modern mobile user-plane deployments (5G UPF, gNB CU-UP) push large volumes of GTP-U encapsulated traffic through commodity servers fitted with high-speed NICs. Our goal was to leverage NIC hardware capabilities to reduce complexity while improving overall performance. Many designs exist, but not all handle large traffic volumes well. Our target is to achieve around 800 Gbps on a 1RU commodity server. The UPF is a key routing element in this context: it acts as a border relay between the mobile core network and a Layer 3 network (Internet or any private network). The main UPF protocol stack looks like:

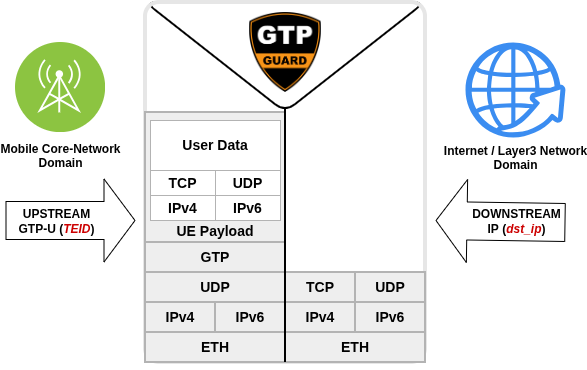

Mobile Core-Network is encapsulating all UE traffic into GTP until UPF where traffic is decapsulated and routed to reach the destination network. Each UE session is identified by a TEID (Tunnel Endpoint Identifier) — a 32-bit value carried in every GTP-U packet header.

Improving performance at large-scale network is a multi-level engineering journey spanning hardware selection, system configuration, network engineering, and software engineering — each layer compounding the gains of the one below.

Hardware and System Configuration

The platform is a commodity server with two CPU sockets (Intel Xeon Gold 6342 @ 2.80 GHz), each forming an independent NUMA node. Two NVIDIA ConnectX-7 HHHL adapters (MCX755106AC-HEAT, 200GbE / NDR200 IB, 2 ports each) are fitted, one per NUMA node, attached to the local PCIe bus. Each port exposes multiple rx_queues; IRQ affinity pins every rx_queue to a dedicated core on the same NUMA node:

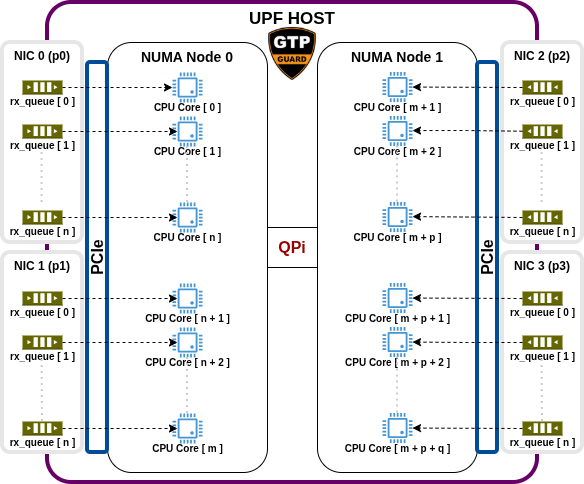

The concrete sizing: 48 cores total, 24 per NUMA node. Each port is configured with 8 RX queues — 16 per adapter, 32 system-wide. Cores 16–23 (NUMA 0) and 40–47 (NUMA 1) are reserved for control-plane and OS tasks:

NUMA node 0                          NUMA node 1
CPU  0 – 23                          CPU 24 – 47

ConnectX-7 #0                        ConnectX-7 #1
  port 0:  queues 0–7  → CPU  0–7      port 0:  queues 0–7  → CPU 24–31
  port 1:  queues 0–7  → CPU  8–15     port 1:  queues 0–7  → CPU 32–39
  (remaining cores 16–23 reserved      (remaining cores 40–47 reserved
   for control plane / OS)              for control plane / OS)

Hyperthreading is disabled in the BIOS: the workload is memory/interrupt-bound, not compute-bound, so HT brings no throughput gain. It also collapses logical and physical core IDs into one contiguous space, removing any ambiguity when pinning rx_queue IRQs.

System Tweaks

Deployment model. Two partitioning strategies were evaluated: VMs with the ConnectX-7 adapters passed through via VFIO, and direct host (bare-metal or lightweight containers). Despite careful NUMA and CPU isolation, the VM path introduced a significant throughput overhead compared to running directly on the host. For production deployments where performance matters, bare-metal or containers are strongly preferred over VMs.

Bare-metal (basic) kernel arguments:

GRUB_CMDLINE_LINUX="hugepagesz=1G hugepages=32 intel_pstate=disable \
                    mitigations=off intel_iommu=on iommu=pt intel_idle.max_cstate=1 \
                    processor.max_cstate=1 cpufreq.default_governor=performance"

Argument	Benefit for UPF
`hugepagesz=1G` / `hugepages=32`	1 GB huge pages reduce TLB pressure on large packet buffers
`intel_iommu=on` / `iommu=pt`	Enables the IOMMU; passthrough mode (`pt`) maps DMA addresses 1:1, eliminating IOMMU translation overhead on the data path
`intel_idle.max_cstate=1` / `processor.max_cstate=1`	Keeps cores in shallow sleep, eliminating wake-up latency on interrupt delivery
`intel_pstate=disable` / `cpufreq.default_governor=performance`	Forces maximum clock frequency, removing P-state transitions on the fast path
`mitigations=off`	Removes Spectre/Meltdown overhead on syscall and interrupt paths

Bare-metal (data-path core isolation) kernel arguments:

GRUB_CMDLINE_LINUX="hugepagesz=1G hugepages=32 intel_idle.max_cstate=1 \
                    processor.max_cstate=1 intel_pstate=disable \
                    cpufreq.default_governor=performance intel_iommu=on iommu=pt \
                    numa_balancing=disable transparent_hugepage=never \
                    nohz_full=2-23,26-47 rcu_nocbs=2-23,26-47 rcu_nocb_poll \
                    isolcpus=managed_irq,domain,2-23,26-47 irqaffinity=0-1,24-25 \
                    kthread_cpus=0-1,24-25 skew_tick=1 nmi_watchdog=0 nosoftlockup \
                    clocksource=tsc tsc=reliable audit=0 mitigations=off"

Argument	Benefit for UPF
`numa_balancing=disable`	Prevents the kernel from migrating pages across NUMA nodes, preserving NIC-local memory affinity
`transparent_hugepage=never`	Avoids unpredictable THP compaction stalls on the data path
`nohz_full=2-23,26-47`	Disables periodic timer ticks on data-path cores, eliminating tick-driven jitter
`rcu_nocbs=2-23,26-47` / `rcu_nocb_poll`	Offloads RCU callbacks to control cores, preventing callback execution on data-path cores
`isolcpus=managed_irq,domain,2-23,26-47`	Removes data-path cores from the scheduler domain and IRQ balancing
`irqaffinity=0-1,24-25` / `kthread_cpus=0-1,24-25`	Confines system IRQs and kernel threads to control cores
`skew_tick=1`	Staggers per-CPU timer firings to avoid lock contention bursts
`nmi_watchdog=0` / `nosoftlockup`	Disables watchdog NMIs and soft-lockup detection that would interrupt isolated cores
`clocksource=tsc` / `tsc=reliable`	Uses TSC as the sole clock source, avoiding HPET/ACPI overhead on time-sensitive paths
`audit=0`	Disables kernel auditing, removing syscall hook overhead

NIC tuning (ethtool):

tune_nic() {
        local dev=$1
        ethtool -K "$dev" gro off lro off gso off tso off
        ethtool -K "$dev" rx-vlan-offload off tx-vlan-offload off
        ethtool -G "$dev" rx 8192 tx 8192
        ethtool -C "$dev" adaptive-rx off adaptive-tx off
        ethtool -C "$dev" rx-usecs 8 rx-frames 64 tx-usecs 8
        ethtool --set-priv-flags "$dev" rx_striding_rq on
        ethtool --set-priv-flags "$dev" rx_cqe_compress on
        ethtool -L "$dev" combined 8
}

Option	Benefit for UPF
`gro off` / `lro off`	Disables receive coalescing; UPF must process each GTP-U packet individually — merged packets break per-TEID classification
`gso off` / `tso off`	Segmentation offloads are irrelevant for GTP-U encapsulated traffic and add unnecessary overhead
`rx-vlan-offload off` / `tx-vlan-offload off`	In hairpin mode the VLAN id is rewritten in-place; offload disabled to prevent stripping or inserting VLAN tags over the packet buffer. VLAN offload would also be of limited benefit here since UPF already touches every frame header for GTP-U encap/decap
`rx 8192` / `tx 8192`	Large ring buffers absorb traffic bursts without drops before NAPI can drain the queue
`adaptive-rx off` / `adaptive-tx off`	Fixed coalescing eliminates the jitter introduced by adaptive interrupt rate adjustment
`rx-usecs 8` / `rx-frames 64`	Interrupt fires after 8 µs or 64 frames; balances latency against CPU overhead for mobile-sized packets
`tx-usecs 8`	Coalesces transmit completions over 8 µs, reducing TX interrupt rate without adding meaningful latency
`rx_striding_rq on`	Packs multiple packets per WQE, reducing DMA descriptor pressure and improving throughput
`rx_cqe_compress on`	Compresses CQE entries, cutting PCIe bandwidth consumed by completion processing
`combined 8`	Sets 8 queue pairs per port, matching the IRQ-to-core affinity mapping

Kernel network tuning (sysctl):

sysctl -w net.core.busy_poll=50
sysctl -w net.core.busy_read=50
sysctl -w net.core.netdev_budget=600
sysctl -w net.core.netdev_budget_usecs=8000

Parameter	Benefit for UPF
`net.core.busy_poll=50`	Spins the socket poll loop for 50 µs before sleeping, catching back-to-back GTP-U bursts without an interrupt round-trip
`net.core.busy_read=50`	Same for the read path; keeps the UPF worker on-CPU during high-frequency packet streams
`net.core.netdev_budget=600`	Allows NAPI to process up to 600 packets per poll cycle, amortising scheduling overhead under sustained load
`net.core.netdev_budget_usecs=8000`	Extends the NAPI time budget to 8 ms, ensuring large batches complete without premature preemption

Pinning `rx_queue` IRQs

With HT disabled and 8 queues per port, the last step is to bind each queue's MSI-X interrupt to the right core. The script pin-mlx-irqs.sh takes a PCI device address and a CPU list, enumerates all MSI IRQs exposed under /sys/bus/pci/devices/<PCI>/msi_irqs/, and writes each IRQ's target core to /proc/irq/<N>/smp_affinity_list, round-robining across the supplied CPU list.

Our server exposes the four ConnectX-7 ports at the following PCI addresses:

$ lspci | grep ConnectX
31:00.0 Ethernet controller: Mellanox Technologies MT2910 Family [ConnectX-7]
31:00.1 Ethernet controller: Mellanox Technologies MT2910 Family [ConnectX-7]
b1:00.0 Ethernet controller: Mellanox Technologies MT2910 Family [ConnectX-7]
b1:00.1 Ethernet controller: Mellanox Technologies MT2910 Family [ConnectX-7]

Bus 31:xx sits on NUMA node 0, bus b1:xx on NUMA node 1. The script is called once per port with the 8 data-path cores of the local NUMA node:

# ConnectX-7 #0  (NUMA node 0, PCIe 0000:31:00.x)
./pin-mlx-irqs.sh 0000:31:00.0 0-7    # port 0 → CPU 0–7
./pin-mlx-irqs.sh 0000:31:00.1 8-15   # port 1 → CPU 8–15

# ConnectX-7 #1  (NUMA node 1, PCIe 0000:b1:00.x)
./pin-mlx-irqs.sh 0000:b1:00.0 24-31  # port 0 → CPU 24–31
./pin-mlx-irqs.sh 0000:b1:00.1 32-39  # port 1 → CPU 32–39

Sample output for the first port confirms one IRQ per core, cycling through CPUs 0–7:

PCI device: 0000:31:00.0
CPU list: 0 1 2 3 4 5 6 7
Assign IRQ 176 → CPU 0
Assign IRQ 177 → CPU 1
Assign IRQ 200 → CPU 2
...
Assign IRQ 220 → CPU 6

Each data-path core now handles exactly one source of interrupts: its own rx_queue.

Hairpin Forwarding

In a standard UPF design, a decapsulated UE packet leaving the GTP tunnel must traverse the kernel network stack twice: once on ingress (core-network side) and once on egress (Internet/L3 side), typically through two distinct physical interfaces. This doubles the per-packet processing cost and consumes precious CPU cycles on the data path.

Hairpin mode eliminates this by turning the NIC itself into the forwarding element. Each physical port is split into two logical segments via VLANs: one VLAN carries traffic from the mobile core-network (GTP-U encapsulated), the other carries traffic toward the Internet or L3 network (decapsulated). When the UPF forwards a packet, it rewrites the VLAN id in-place and hands the frame back to the same port — no packet buffer copy, no second DMA, no extra NIC traversal.

ConnectX-7 port
  ├── VLAN A  ←→  Mobile Core-Network  (GTP-U encapsulated)
  └── VLAN B  ←→  Internet / L3 Network (decapsulated)

The VLAN tag is overwritten directly in the existing buffer, which is why NIC VLAN offload is disabled: allowing the hardware to strip or insert tags would require expanding or shrinking the buffer, breaking the zero-copy rewrite assumption. Beyond that constraint, VLAN offload carries less benefit in the UPF case than in a plain Ethernet forwarding scenario: because the forwarding process performs GTP-U encapsulation or decapsulation on every packet, the CPU is already touching the full frame header, making hardware-assisted VLAN tag manipulation a marginal saving at best.

Steering Policy

With hardware initialised and system tuned, the remaining question is: how does a packet arriving at a port know which rx_queue — and therefore which CPU core — it belongs to? Modern NICs implement this entirely in firmware, before any DMA write, through two distinct mechanisms:

Receive Side Scaling (RSS) is the baseline. The NIC firmware computes a Toeplitz hash over a fixed set of header fields (typically the outer IP/UDP 4-tuple) and uses the result to index an indirection table that maps to an rx_queue. Distribution is statistically uniform across flows but offers no control: the operator cannot direct a specific flow to a specific queue, and the hash function is blind to any header field the firmware was not programmed to inspect.

Note

ConnectX-7 firmware advertises MLX5_FLEX_PARSER_GTPU_ENABLED, confirming the hardware can parse GTP-U headers. Two attempts were made to exploit this for RSS:

Kernel driver extension. We extended the mlx5e driver at the TTC and RSS subsystems to set MLX5_HASH_FIELD_SEL_GTPU_TEID on the receive TIR, using 1 << 20 as its value. This is pure speculation — we are almost certainly wrong without the PRM to confirm the actual bit assignment.

DPDK draft. A quick proof-of-concept configured rxmode.mq_mode to RTE_ETH_MQ_RX_RSS and installed an RTE_FLOW_ACTION_TYPE_RSS action flow. This was also rejected by the firmware without further diagnostic.

Both attempts were inconclusive. Confirming whether TEID-based RSS is reachable at all would require the NVIDIA kernel team and access to the ConnectX-7 PRM. Regardless, RSS was ultimately abandoned: even if it worked, its non-deterministic nature would prevent the strict per-UE CPU affinity that makes flow steering valuable in this design.

Flow Steering (also referred to as ntuple filtering or TC flower offload depending on the interface) replaces probabilistic hashing with explicit match-action rules programmed into the NIC flow table. The firmware evaluates each arriving packet against the rule set and places it in the queue designated by the matching rule. Classification is deterministic and field-flexible: any header field the NIC parser can reach — including tunnel headers and inner payloads — can be used as a match key.

The key differences:

	RSS	Flow Steering
Queue selection	Hash-based, probabilistic	Rule-based, deterministic
Match fields	Fixed outer 4-tuple	Any field reachable by NIC parser
Operator control	Indirection table only	Per-rule queue assignment
Same-flow affinity	Best-effort	Guaranteed

Both mechanisms operate entirely inside the NIC firmware. The CPU is not involved in the classification decision; by the time the interrupt fires, the packet is already in the correct ring buffer.

Each approach carries distinct performance and complexity trade-offs:

Criterion	RSS	Flow Steering
Distribution uniformity	Toeplitz hash, uniform regardless of input skew	Depends on TEID allocation pattern — skewed allocations starve some queues
Queue count scalability	O(1) via RETA — any count, any size	O(N) rules bounded by flow table capacity
Non-power-of-2 queues	Native	Requires multiple rules per queue
Live rebalancing	Atomic per-entry RETA update, no gap	Full rule reinstall, brief coverage gap
Pipeline latency	Lower — hash + single RETA lookup	Higher — full flow table priority/group lookup chain
Unmatched traffic	All traffic distributed	Falls to default path (queue 0 or outer-IP RSS)
Rule installation cost	Cheap RETA write	Firmware mailbox round-trip per rule

For GTP-U traffic, standard RSS hashes the outer IP/UDP 4-tuple, ignoring the TEID entirely — thousands of tunnels sharing the same outer address pair collapse onto a handful of queues. Even if RSS over the TEID were functional, it would remain non-deterministic: the Toeplitz hash gives no guarantee that packets from the same UE session land consistently on the same queue. This defeats any attempt at per-UE CPU affinity.

We therefore chose flow steering despite its higher complexity: offloading classification to the NIC firmware — even through a deeper pipeline — is always preferable to consuming CPU cycles on the data path. The rule installation and matching cost is further contained by our topology: with only 8 rx_queues per port, the flow table stays small (16 rules per adapter, 32 system-wide), keeping the firmware lookup chain short and rule management straightforward.

With hardware initialised, system tuned, IRQs pinned, and the steering mechanism chosen, all the building blocks are in place. The following section details how flow steering is concretely applied to our UPF traffic.

Flow Steering for UPF

The core design principle is range partitioning: given a W-bit field and N queues (N a power of 2), the field space is split into N equal non-overlapping ranges using the top k = log2(N) bits:

k       = log2(N)                    # bits needed to index N queues
mask    = ((1 << k) - 1) << (W - k)  # top-k bits set, remainder zero
base[i] = i << (W - k)               # i = 0 … N-1

Queue i matches any packet where field & mask == base[i]. The mask is identical across all rules; only the base changes per queue. This formula applies uniformly to both traffic directions — upstream on the TEID field, downstream on the IP destination address.

Applied to our 8-queue topology (k=3):

Upstream (core-network → UPF). W=32, field = GTP-U TEID:

queue 0  TEID & 0xe0000000 == 0x00000000  →  CPU  0
queue 1  TEID & 0xe0000000 == 0x20000000  →  CPU  1
...
queue 7  TEID & 0xe0000000 == 0xe0000000  →  CPU  7

The control plane allocates TEIDs from the range matching the target queue, making session placement a scheduling decision taken once at setup time — the hardware enforces it at line rate for the lifetime of the session.

Downstream (Internet/L3 → UPF). Field = IP destination address. For IPv4 (W=32), an operator prefix 10.0.0.0/8 split over 8 queues borrows 3 bits, yielding mask 255.224.0.0:

queue 0  dst & 255.224.0.0 == 10.0.0.0    →  CPU  0
queue 1  dst & 255.224.0.0 == 10.32.0.0   →  CPU  1
...
queue 7  dst & 255.224.0.0 == 10.224.0.0  →  CPU  7

For IPv6 (W=128), an operator prefix 2001:db8::/46 split over 8 queues borrows 3 bits, yielding /49 sub-prefixes with mask ffff:ffff:ffff:8000:::

queue 0  dst & ffff:ffff:ffff:8000:: == 2001:db8::           →  CPU  0
queue 1  dst & ffff:ffff:ffff:8000:: == 2001:db8:0:8000::    →  CPU  1
...
queue 7  dst & ffff:ffff:ffff:8000:: == 2001:db8:3:8000::    →  CPU  7

A UE session steered to CPU N on ingress is processed on CPU N on egress, keeping UE context fully core-local in both directions with no cross-core coordination.

Computing these masks by hand is error-prone; the ip-pfx-split tool automates the calculus — given a prefix and a queue count it outputs the mask and one base address per queue. It will be used directly when configuring the flow steering rules covered in the flow steering configuration section:

$ ./ip-pfx-split 10.0.0.0/8 8
q0   10.0.0.0/255.224.0.0
q1   10.32.0.0/255.224.0.0
q2   10.64.0.0/255.224.0.0
q3   10.96.0.0/255.224.0.0
q4   10.128.0.0/255.224.0.0
q5   10.160.0.0/255.224.0.0
q6   10.192.0.0/255.224.0.0
q7   10.224.0.0/255.224.0.0

$ ./ip-pfx-split 2001:db8::/46 8
q0   2001:db8::/ffff:ffff:ffff:8000::
q1   2001:db8:0:8000::/ffff:ffff:ffff:8000::
q2   2001:db8:1::/ffff:ffff:ffff:8000::
q3   2001:db8:1:8000::/ffff:ffff:ffff:8000::
q4   2001:db8:2::/ffff:ffff:ffff:8000::
q5   2001:db8:2:8000::/ffff:ffff:ffff:8000::
q6   2001:db8:3::/ffff:ffff:ffff:8000::
q7   2001:db8:3:8000::/ffff:ffff:ffff:8000::

Benefits of Range Partitioning

Range partitioning is more than a static distribution scheme — it is the foundation for dynamic, fine-grained resource management on a live system.

Each rx_queue is an isolated, independently measurable resource unit: a dedicated CPU core, a slice of TEID space, and a shard of UE context memory. The hardware enforces the mapping, giving the UPF resource allocator real-time visibility into each bucket at zero coordination cost.

Session placement as a scheduling decision. Assigning a new UE session is no longer a simple TEID allocation from a flat pool — it is a scheduling decision driven by live metrics:

CPU load — steer new sessions away from cores already near saturation.
Active UEs per queue — balance session count to avoid context-shard hot-spots.
Port bandwidth — avoid placing heavy UEs on already-saturated queues.
Class of service — isolate traffic classes onto dedicated cores to enforce service guarantees.

The UPF resource allocator acts by choosing which TEID range to allocate from at session establishment. No packet re-classification or runtime thread migration is needed; the hardware enforces the placement from the first data packet onwards. This scheduling layer also naturally encodes QoS policy: premium subscribers land on lightly loaded cores, best-effort or heavy-consumption subscribers are isolated to dedicated ones, bounding their impact on the rest of the system.

Lock-free data-path. Because all traffic for a given UE is pinned to one core, the UE context is thread-local state — no locks, no cross-core coordination anywhere on the fast path.

The practical impact becomes clear with UE usage reporting, which underpins billing, quota enforcement, and roaming settlements. In a conventional RSS-based UPF, a session's packets may be processed by any core at any time, so producing a usage report requires aggregating per-CPU counters under locks. Quota triggers are worse: per-packet threshold checks across multiple CPUs under locking are prohibitively expensive, so designs fall back to periodic polling. Accuracy then depends on polling frequency — but aggressive polling starves the routing pipeline, and even so it can never match a synchronous per-packet trigger. The polling window silently misses traffic forwarded between two collection passes, introducing measurement gaps that are hard to detect because they corrupt the very source of the metrics. For roaming traffic, where billing accuracy has direct financial and regulatory consequences, this is a fundamental design flaw.

With range partitioning, counters are core-local scalars, quota triggers fire synchronously on the data path, and usage reports read a single shard of state — no aggregation, no polling, no gap.

Challenges of Range Partitioning

Range partitioning is only effective when the UPF controls the fields it partitions on. Several real-world deployment constraints can break this assumption.

IP address allocation by SMF. The most impactful limitation applies to the downstream path. In a standard 3GPP deployment, UE IP addresses are allocated by the SMF, not the UPF. The UPF has no influence over which address is assigned to which session. If the SMF draws from the operator prefix arbitrarily — or from a flat pool without awareness of the UPF's queue topology — the sub-prefix-to-queue mapping becomes meaningless: downstream traffic lands on whatever queue owns the destination sub-prefix, with no correlation to the upstream queue handling the same UE. The result is load imbalance on the downstream path, which is precisely where the bulk of user-plane traffic flows.

Resolving this requires either co-locating IP allocation logic within the UPF so it can choose addresses aligned with the target queue, or defining an interface between SMF and UPF that exposes the partitioning topology. Neither is standardised in current 3GPP releases, making this an open integration challenge for operators deploying this design.

Static partitioning under dynamic load. Range boundaries are fixed at rule installation time. A sudden concentration of heavy sessions in one TEID range will saturate the corresponding core while others remain idle. The partitioning cannot rebalance in flight — doing so would require moving active sessions to new TEID ranges, which implies signalling to the peer and re-establishing GTP tunnels. Careful capacity planning and CoS-aware session placement mitigate this, but do not eliminate it.

Per-UE throughput ceiling. Since all traffic for a session is pinned to one core, the maximum throughput achievable for a single UE is bounded by the processing capacity of that core. Distributing a single session across all CPUs would in theory yield higher peak throughput for that individual flow.

In practice, this is not a real concern. With tens of thousands of concurrent sessions, the law of large numbers produces a statistically uniform distribution of load across queues — the aggregate throughput across all cores is fully utilised. Furthermore, the radio access network itself imposes a natural ceiling: the gNB traffic scheduler allocates spectrum resources per UE based on radio conditions and CellID capacity, so no single session can realistically saturate a CPU core before the radio layer becomes the bottleneck. Both effects combined make per-UE CPU pinning a non-issue for any realistic mobile deployment.

Dual-stack session affinity. A UE session can carry both IPv4 and IPv6 traffic simultaneously. Maintaining CPU pinning across both address families requires that the IPv4 and IPv6 downstream addresses allocated to the same session both map to the same rx_queue. This means the allocation rule must be applied consistently across both prefix spaces: the queue index derived from the IPv4 address must equal the queue index derived from the IPv6 address for the same UE. If IP allocation is handled externally — as discussed above for the SMF case — this constraint is even harder to enforce, since it requires the allocator to be aware of both the queue topology and the dual-stack pairing. Any mismatch splits a single UE's downstream traffic across two cores, breaking the lock-free guarantee and reintroducing cross-core state sharing for that session.

Functional Overview

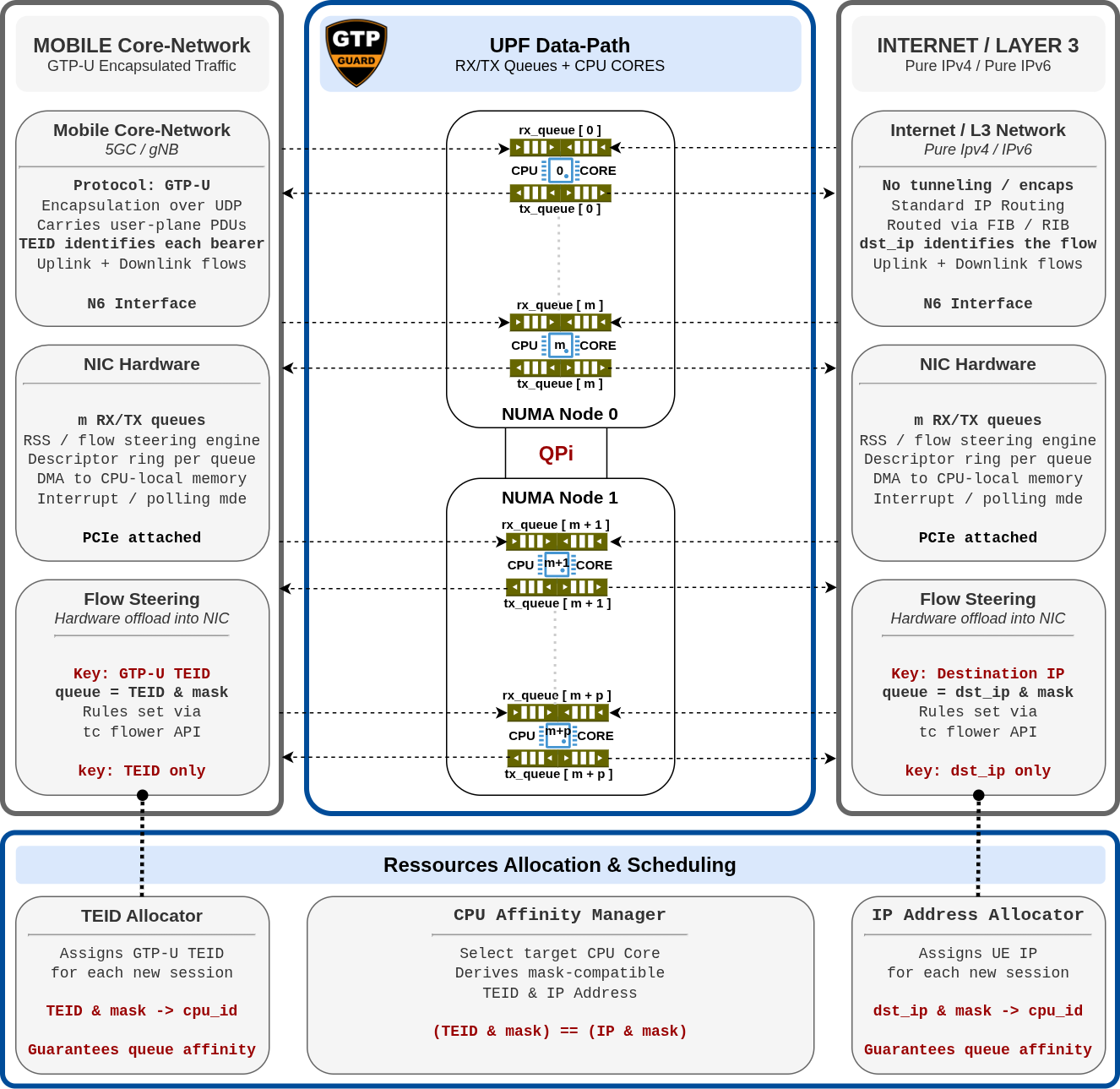

The diagram below summarises all the building blocks described so far into a single view: hardware topology, NUMA affinity, queue partitioning, IRQ pinning, bidirectional traffic locality and Hairpin forwarding.

tx_queue affinity. The ethtool -L combined 8 setting creates 8 queue pairs per port — each pair holds one rx_queue and one tx_queue sharing the same NUMA-local DMA ring. XPS (Transmit Packet Steering) maps each CPU to its paired tx_queue, so when a core finishes processing a UE packet and sends the reply it submits the packet to its own ring without touching any other core's state. Both legs of a UE session — receive and transmit — are therefore handled by the same CPU, keeping the UE context shard continuously warm in local cache.

Flow Steering Configuration

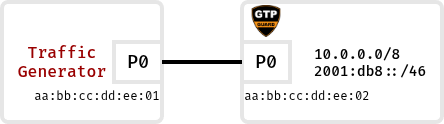

This section walks through a concrete end-to-end validation of the flow steering design. The goal is to show that every traffic class — GTP-U over IPv4, GTP-U over IPv6, plain IPv4, and plain IPv6 — lands on the expected rx_queue after the steering rules are installed.

Prerequisites

Standard kernel TC flower and iproute2 do not yet support the two primitives this design relies on: masked enc_key_id matching (for TEID range rules) and arbitrary subnet-mask matching on IP destination addresses (for sub-prefix rules). Both require out-of-tree patches.

Kernel patches (patch-kernel/) — currently under review by the NVIDIA kernel team for upstream integration:

Patch	Purpose
`0001-net-mlx5e-TC-offload-rx_queue-action-to-NIC-flow.patch`	Adds `skbedit queue_mapping` offload support to the mlx5e TC path so the NIC firmware enforces queue assignment without CPU involvement
`0002-net-mlx5e-Support-GTP-U-TEID-range-matching-in-flowe.patch`	Exposes masked TEID matching to the flower classifier, enabling range-based GTP-U steering rules

iproute2 TC patches (patch-iproute2/):

Patch	Purpose
`0001-tc-f_flower-add-mask-support-for-enc_key_id.patch`	Extends the `enc_key_id` flower key to accept a `/mask` suffix, required to express TEID ranges
`0002-tc-f_flower-support-arbitrary-mask-in-IP-address-mat.patch`	Allows non-CIDR subnet masks on `dst_ip`, required to express the sub-prefix ranges produced by `ip-pfx-split`

Apply kernel patches with git am, rebuild and install. Apply iproute2 patches the same way, then rebuild the tc binary and place it alongside the scripts.

Test Environment

The setup involves two nodes connected back-to-back:

Traffic Generator — sends one crafted packet per partition range across all four traffic classes.
UPF — receives traffic on p0, flow steering rules direct each packet to the correct rx_queue.

UPF Node: Installing Steering Rules

setup-fs.sh installs the full rule set in one shot. It relies on teid-split and ip-pfx-split to generate the per-queue base/mask pairs, then feeds them directly into tc filter add commands:

$ ./setup-fs.sh

The script installs three rule groups on p0 ingress:

GTP-U (over IPv4 and IPv6): 8 rules per address family matching enc_key_id <base>/0xe0000000 on VLAN 522, steered to queues 0–7.
IPv6 L3: 8 rules matching dst_ip 2001:db8:<sub-prefix>/ffff:ffff:ffff:8000:: on VLAN 522, steered to queues 0–7.
IPv4 L3: 8 rules matching dst_ip 10.<n>.0.0/255.224.0.0 on VLAN 522, steered to queues 0–7.

Rule anatomy

A GTP-U steering rule for queue 1 looks like:

tc filter add dev p0 ingress protocol 802.1q flower skip_sw \
        vlan_id 522 vlan_ethtype ip                         \
        enc_dst_port 2152 enc_key_id 0x20000000/0xe0000000  \
        action skbedit queue_mapping 1 skip_sw

Breaking it down field by field:

Field	Value	Meaning
`dev p0 ingress`	—	Match on the ingress path of port `p0`
`protocol 802.1q`	—	Outer Ethernet type is 802.1Q; the frame carries a VLAN tag
`flower`	—	Use the flower classifier (match-action rule engine)
`skip_sw`	—	Hardware offload only — do not fall back to software classification (see below)
`vlan_id 522`	—	Match the VLAN tag value; distinguishes the L3/Internet-side traffic from the core-network side
`vlan_ethtype ip`	`ipv6` for IPv6	Inner Ethernet type after VLAN strip; selects the outer IP version carrying the GTP-U tunnel
`enc_dst_port 2152`	—	Match the UDP destination port of the GTP-U tunnel (standard GTP-U port)
`enc_key_id 0x20000000/0xe0000000`	—	Match the GTP-U TEID against a base/mask pair; any TEID whose top 3 bits equal `001` lands here
`action skbedit queue_mapping 1`	—	Place the matched packet into `rx_queue` 1
`skip_sw` (on action)	—	Offload the action to the NIC; the CPU is not involved in executing it

The equivalent rule for IPv4 L3 steering on queue 1:

tc filter add dev p0 ingress protocol 802.1q flower skip_sw \
        vlan_id 522 vlan_ethtype ip                         \
        dst_ip 10.32.0.0/255.224.0.0                        \
        action skbedit queue_mapping 1 skip_sw

Here dst_ip uses a non-CIDR subnet mask (255.224.0.0) to express the sub-prefix range produced by ip-pfx-split. Any destination address in 10.32.0.0–10.63.255.255 matches and is steered to queue 1.

Why skip_sw is critical. Without it the kernel installs the rule in software (in the kernel's own classifier) as a fallback. Software classification means the packet is DMA'd to a ring buffer, the CPU takes an interrupt, processes the packet through the classifier, and only then decides which queue it belongs to — by which point the packet is already in memory and the queue assignment is meaningless as a routing decision. The CPU has done the work the NIC should have done. skip_sw makes the rule hardware-only: if the NIC firmware cannot offload it (wrong match fields, table full, firmware limitation), tc returns an error rather than silently falling back to software. This turns a misconfiguration into an explicit failure, which is exactly what is needed in a performance-critical path.

Rule partition tables

$ ./teid-split 8
q0   0x00000000/0xe0000000
q1   0x20000000/0xe0000000
q2   0x40000000/0xe0000000
q3   0x60000000/0xe0000000
q4   0x80000000/0xe0000000
q5   0xa0000000/0xe0000000
q6   0xc0000000/0xe0000000
q7   0xe0000000/0xe0000000

$ ./ip-pfx-split 10.0.0.0/8 8
q0   10.0.0.0/255.224.0.0
q1   10.32.0.0/255.224.0.0
q2   10.64.0.0/255.224.0.0
q3   10.96.0.0/255.224.0.0
q4   10.128.0.0/255.224.0.0
q5   10.160.0.0/255.224.0.0
q6   10.192.0.0/255.224.0.0
q7   10.224.0.0/255.224.0.0

$ ./ip-pfx-split 2001:db8::/46 8
q0   2001:db8::/ffff:ffff:ffff:8000::
q1   2001:db8:0:8000::/ffff:ffff:ffff:8000::
q2   2001:db8:1::/ffff:ffff:ffff:8000::
q3   2001:db8:1:8000::/ffff:ffff:ffff:8000::
q4   2001:db8:2::/ffff:ffff:ffff:8000::
q5   2001:db8:2:8000::/ffff:ffff:ffff:8000::
q6   2001:db8:3::/ffff:ffff:ffff:8000::
q7   2001:db8:3:8000::/ffff:ffff:ffff:8000::

UPF Node: Monitoring

xdp-rss-mon attaches the xdp_rss BPF program to the interface in driver mode. At the earliest point in the receive path it logs each packet's rx_queue index along with the TEID (for GTP-U) or destination IP (for plain IPv4/IPv6), via bpf_printk read back from trace_pipe. The result is a live confirmation that NIC firmware steering is placing every packet on the intended queue.

Launch xdp-rss-mon on p0 before starting the traffic generator:

$ sudo ./xdp-rss-mon -i p0
XDP program 'xdp_rss' attached to interface 'p0' (ifindex 5)
RSS activity monitoring... (Ctrl-C to stop)

A tcpdump on p0 provides a parallel view at the Ethernet level:

$ sudo tcpdump -i p0 -l -n

Traffic Generator Node: Sending Test Traffic

test-fs.sh iterates over every partition range for all four traffic classes and sends one packet per range using pkt-send.py:

$ ./test-fs.sh
=== GTP-U over IPv4 TEID steering ===
Sending 1 GTP-U packet(s): TEID=0x00000001  p0.522  IPv4
Sending 1 GTP-U packet(s): TEID=0x20000000  p0.522  IPv4
...
=== GTP-U over IPv6 TEID steering ===
Sending 1 GTP-U packet(s): TEID=0x00000001  p0.522  IPv6
...
=== IPv4 destination steering ===
Sending 1 UDP packet(s): p0.522  IPv4
...
=== IPv6 destination steering ===
Sending 1 UDP packet(s): p0.522  IPv6
...

Results

xdp-rss-mon output confirms each packet was delivered to the queue matching its partition. Each rx_queue index corresponds exactly to the queue selector embedded in the TEID or destination address:

<idle>-0  [000] xdp_rss: GTP-U/IPv4 rx_queue=0 teid=0x00000001
<idle>-0  [001] xdp_rss: GTP-U/IPv4 rx_queue=1 teid=0x20000000
<idle>-0  [002] xdp_rss: GTP-U/IPv4 rx_queue=2 teid=0x40000000
<idle>-0  [003] xdp_rss: GTP-U/IPv4 rx_queue=3 teid=0x60000000
<idle>-0  [004] xdp_rss: GTP-U/IPv4 rx_queue=4 teid=0x80000000
<idle>-0  [005] xdp_rss: GTP-U/IPv4 rx_queue=5 teid=0xa0000000
<idle>-0  [006] xdp_rss: GTP-U/IPv4 rx_queue=6 teid=0xc0000000
<idle>-0  [007] xdp_rss: GTP-U/IPv4 rx_queue=7 teid=0xe0000000
<idle>-0  [000] xdp_rss: GTP-U/IPv6 rx_queue=0 teid=0x00000001
<idle>-0  [001] xdp_rss: GTP-U/IPv6 rx_queue=1 teid=0x20000000
...
<idle>-0  [000] xdp_rss: IPv4 rx_queue=0 dst=0a000000
<idle>-0  [001] xdp_rss: IPv4 rx_queue=1 dst=0a200000
...
<idle>-0  [000] xdp_rss: IPv6 rx_queue=0 dst=20010db8000000000000000000000000
<idle>-0  [001] xdp_rss: IPv6 rx_queue=1 dst=20010db8000080000000000000000000
...

tcpdump output on the UPF confirms the wire-level packet flow. GTP-U packets carry port 2152; plain UDP packets carry port 1234:

15:59:56.799387 IP  192.168.1.1.2152 > 192.168.1.2.2152: UDP, length 12
...
15:59:59.402448 IP6 fd00::1.2152    > fd00::2.2152:    UDP, length 12
...
16:00:02.004321 IP  172.16.0.1.1234 > 10.0.0.0.1234:   UDP, length 4
16:00:02.332330 IP  172.16.0.1.1234 > 10.32.0.0.1234:  UDP, length 4
...
16:00:04.622405 IP6 fd00::1.1234    > 2001:db8::.1234: UDP, length 4
16:00:04.952386 IP6 fd00::1.1234    > 2001:db8:0:8000::.1234: UDP, length 4
...

Every packet lands on the queue determined solely by its TEID range or destination sub-prefix — classification performed entirely inside the NIC firmware, with zero CPU involvement on the classification path.

Reference Materials

All tools described in this article are available at https://github.com/acassen/research under the UPF-flow-steering/ folder.

Tool	Description
`pin-mlx-irqs.sh`	Binds each ConnectX-7 MSI-X `rx_queue` interrupt to a dedicated data-path core
`setup-fs.sh`	Installs GTP-U and Layer 3 flow steering rules on the UPF node via `tc flower`
`test-fs.sh`	Sends one packet per partition range across all traffic classes from the Traffic Generator node
`ip-pfx-split.c`	Splits an IPv4 or IPv6 prefix over N queues and outputs the per-queue base/mask pairs
`teid-split.c`	Splits the 32-bit GTP-U TEID space (or a sub-range) over N queues and outputs the per-queue base/mask pairs
`pkt-send.py`	Forges and sends GTP-U or plain UDP packets over IPv4 or IPv6 using Scapy
`xdp-rss-mon`	Attaches an XDP BPF program to a NIC port and reports the `rx_queue` and key header fields for every arriving packet
